phtolo
Navigator
*****
Posts: 79
« Reply #15 on: February 01, 2015, 06:43:15 PM »

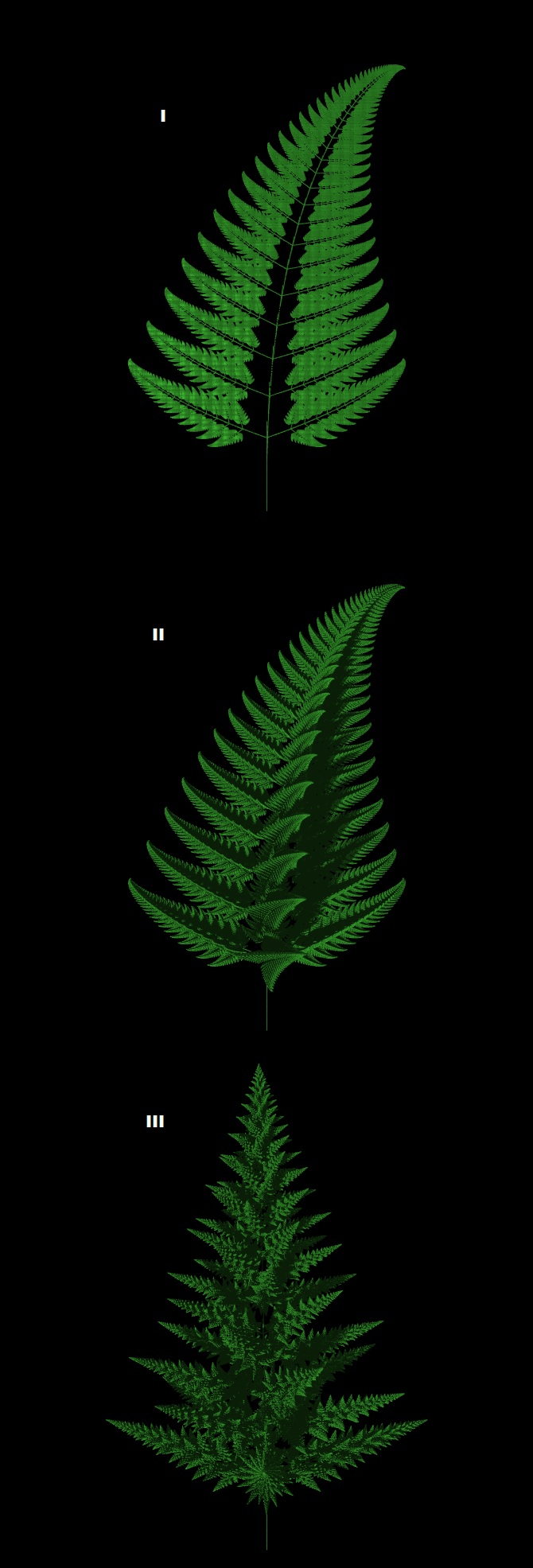

Been playing with the 3d fern variant.

Code:
xform
scale 0, 0.2, 0
weight 0.01

xform
scale 0.9, 0.9, 0.9
rotate z, 2
rotate y, 145    //added on picture III
translate 0, 0.1, 0
weight 0.8

xform
scale 0.2, -0.35, 0.2
rotate z, -110
translate 0, 0.15, 0
weight 0.07

xform
scale 0.2, 0.35, 0.2
rotate z, -70
translate 0, 0.15, 0
weight 0.07

xform   //added on picture II
scale 0.2, -0.35, 0.2
rotate x, -110
translate 0, 0.15, 0
weight 0.07

xform   //added on picture II
scale 0.2, 0.35, 0.2
rotate x, -70
translate 0, 0.15, 0
weight 0.07


http://www.phtolo.se/fractals/fern3dv2.jpg

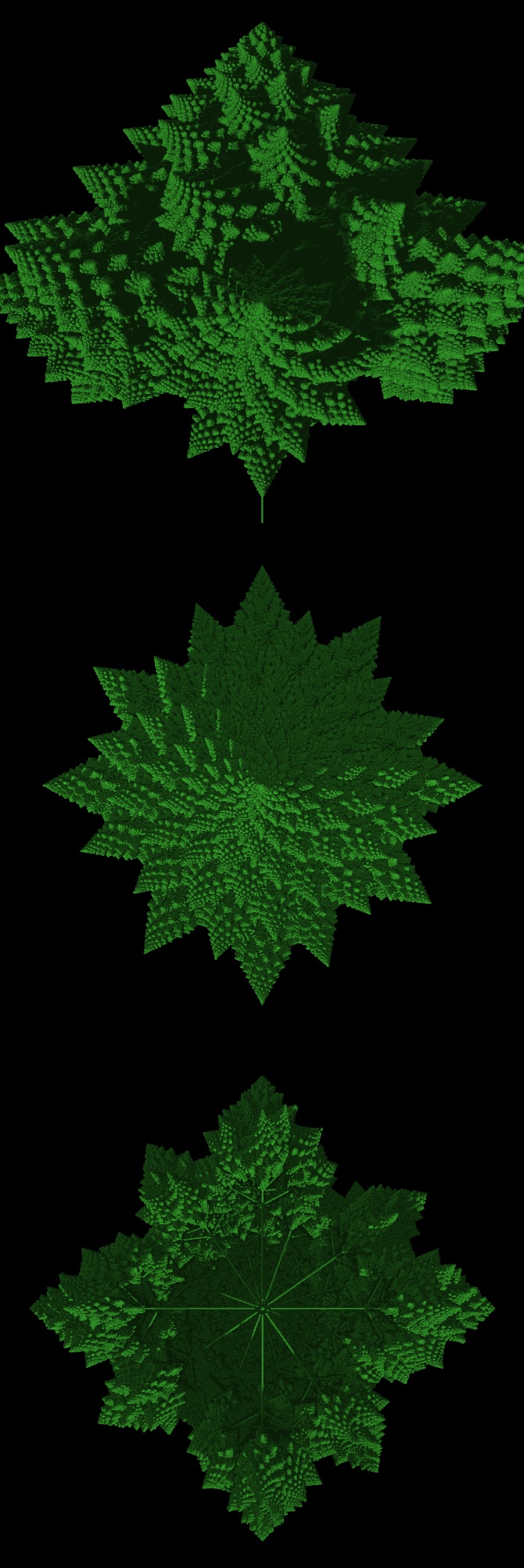

With only minor changes to this something looking a lot like the Romanesco broccoli appears:

Code:
newmap
scale 0,0.4,0
weight 0.01

newmap
scale 0.9,0.9,0.9
rotate y,145
translate 0,0.05,0
weight 0.8

newmap
scale 0.3,0.5,0.3
rotate z,70
translate 0,0.2,0
weight 0.07

newmap
scale 0.3,0.5,0.3
rotate z,-70
translate 0,0.2,0
weight 0.07

newmap
scale 0.3,0.5,0.3
rotate x,-70
translate 0,0.2,0
weight 0.07

newmap
scale 0.3,0.5,0.3
rotate x,70
translate 0,0.2,0
weight 0.07


http://www.phtolo.se/fractals/romanesco.jpg
« Last Edit: February 01, 2015, 07:12:35 PM by phtolo » Logged
DarkBeam
Global Moderator
Fractal Senior
******
Posts: 2512


Fragments of the fractal -like the tip of it
« Reply #16 on: February 01, 2015, 07:04:23 PM »
 A Beer Cup A Beer Cup A Beer Cup

Bigger image please cheesy
Logged
No sweat, guardian of wisdom!
phtolo
Navigator
*****
Posts: 79
« Reply #17 on: February 01, 2015, 07:14:08 PM »
Quote from: DarkBeam on February 01, 2015, 07:04:23 PM
Bigger image please cheesy

Added links to the images
Logged
KRAFTWERK
Global Moderator
Fractal Senior
******
Posts: 1439


Virtual Surreality


WWW
« Reply #18 on: February 01, 2015, 08:23:00 PM »
Wow, lovely broccolo!!!  A Beer Cup
Logged
Surreal Fractals http://mandelwerk.deviantart.com/
3Dprinted Fractals https://www.shapeways.com/shops/mandelpieces
DarkBeam
Global Moderator
Fractal Senior
******
Posts: 2512


Fragments of the fractal -like the tip of it
« Reply #19 on: February 01, 2015, 10:58:44 PM »
Too bad those 3D ifs are hard to code as escape time, knighty was able to do that for just 2 cheesy
Logged
No sweat, guardian of wisdom!
cKleinhuis
Administrator
Fractal Senior
*******
Posts: 7044


formerly known as 'Trifox'


WWW
« Reply #20 on: February 01, 2015, 11:16:53 PM »
so, cant that be used to produce some insight?! is a brocolli related to a fern ?!?!? i mean because when a 3d fern produces a brocoli ... just sayin' lol wink
Logged
---

divide and conquer - iterate and rule - chaos is No random!
knighty
Fractal Iambus
***
Posts: 819
« Reply #21 on: February 05, 2015, 09:20:31 PM »
That brocolli looks tasty.
Quote from: DarkBeam on February 01, 2015, 10:58:44 PM
knighty was able to do that for just 2 cheesy
That was just me being lazy. In principle you can do it for any number of transformations. That one is intended to be used on GPU because there is not lot of memory available. On CPU you can use a priority queue to do the job.
That said, DE is not the best method to render linear IFS. Ray tracing (+ splatting or using z-buffer) is much more efficient. On the other side, hybridising with other nonlinear formulas (maybe) would be easier with DE.
Logged
phtolo
Navigator
*****
Posts: 79
« Reply #22 on: February 07, 2015, 06:55:32 PM »
The broccoli can be reduced to 3 transforms (without stem).

Code:
xform
scale 0.75
rotate y,225
translate 0,0.12,0
weight 0.3

xform
rotate y,360/7
weight 0.8

xform
scale 0.3,-0.5,0.3
rotate z, -110
translate 0,0.2,0
weight 0.07
Logged
DarkBeam
Global Moderator
Fractal Senior
******
Posts: 2512


Fragments of the fractal -like the tip of it
« Reply #23 on: February 08, 2015, 12:55:12 AM »
Good news! smiley
Logged
No sweat, guardian of wisdom!
