Author Topic: Toroidal Coordinates  (Read 4665 times)
0 Members and 1 Guest are viewing this topic.
BradC
Safarist
******
Posts: 85



« on: December 03, 2009, 09:11:11 PM »

Summary: I didn't find any holy grails.

Details: A few people have mentioned trying toroidal coordinates, so I did some experiments and here's what I got. The coordinate systems used in the images below are obtained by rotating polar coordinates about the z-axis. (The usual mathematical toroidal coordinate system is obtained by rotating *bipolar* coordinates about the z-axis, but I haven't tried that.) The coordinates I used are (r, theta, phi), where r is the distance from the center of the tube, theta is the angle measured (from a reference angle gamma) around the tube, and phi is the angle measured along the tube. I used 3 parameters (alpha, beta, gamma) to parametrize the coordinate system. Alpha is the distance from the origin to the center of the tube, beta is the radius of the tube at which "squaring" r leaves points unchanged, and gamma specifies the reference origin used when doubling theta. Squaring a point consists of doubling theta and phi, and squaring and scaling r such that points beta units from the center of the tube stay at distance beta. Points inside the tube move farther inside, and points outside move farther outside. Here's a picture:


I experimented with parameters ranging from the degenerate case of a sphere (alpha = 0, beta = 1), a spindle torus (alpha = 1/4, beta = 3/4), a horn torus (alpha = 1/2, beta = 1/2), and a ring torus (alpha = 3/4, beta = 1/4). See http://en.wikipedia.org/wiki/Torus for a description of these types of tori. In the degenerate case of a sphere, these coordinates are equivalent to spherical coordinates, and we get the regular Mandelbulb fractal. As beta decreases (and our torus gets "thinner"), the fractal tends to thin out and get wispier, but I don't think I see anything new and exciting happening.

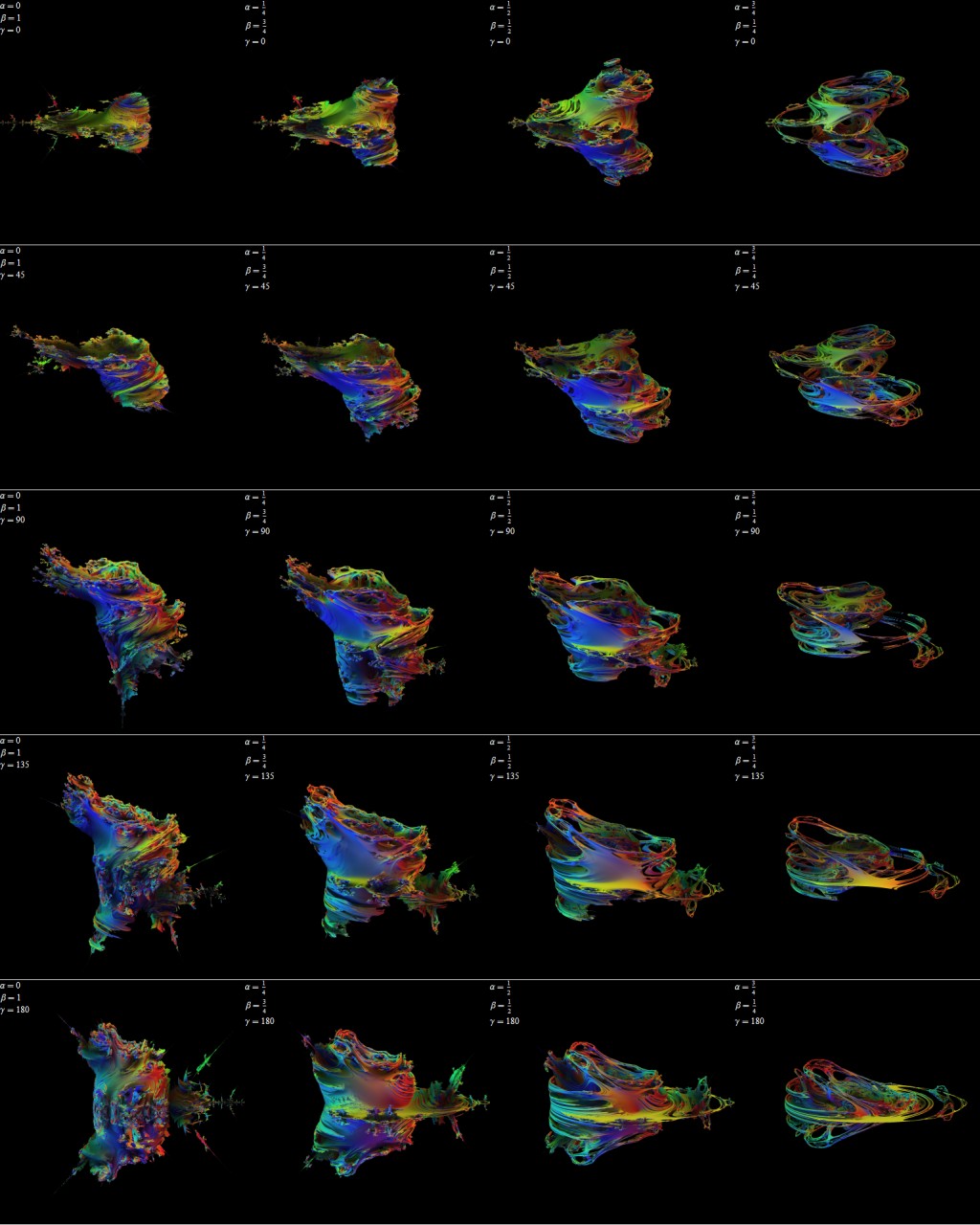

Here are degree 2 examples:


Here are degree 7 examples:

« Last Edit: December 04, 2009, 05:24:39 AM by BradC » Logged
fractalrebel
Fractal Lover
**
Posts: 211



WWW
« Reply #1 on: December 03, 2009, 09:27:02 PM »

Hi Brad,

I think this is still and interesting variant.
Logged

kram1032
Fractal Senior
******
Posts: 1863


« Reply #2 on: December 03, 2009, 11:05:46 PM »

Actually, this is quite nice smiley
Logged
fractalrebel
Fractal Lover
**
Posts: 211



WWW
« Reply #3 on: December 04, 2009, 12:58:30 AM »

Hi Brad,

I think this is still and interesting variant.

Brad,

Your equations don't have beta as a parameter.
Logged

BradC
Safarist
******
Posts: 85



« Reply #4 on: December 04, 2009, 02:14:25 AM »

I only wrote the equations for transforming (x, y, z) <-> (r, theta, phi) above. I left out the "Mandelbrot" part of the formula... In between the two equations above should go this step, which raises to the nth power:

r := r^n / beta^(n-1)
theta := n * theta
phi := n * phi

And then as the very last step, add the Mandelbrot constant:

x := x + a
y := y + b
z := z + c
Logged
David Makin
Global Moderator
Fractal Senior
******
Posts: 2286



Makin' Magic Fractals
WWW
« Reply #5 on: December 04, 2009, 02:50:10 AM »

@BradC - What happens with negative alpha ?
Logged

The meaning and purpose of life is to give life purpose and meaning.

http://www.fractalgallery.co.uk/
"Makin' Magic Music" on Jango
BradC
Safarist
******
Posts: 85



« Reply #6 on: December 04, 2009, 05:35:03 AM »

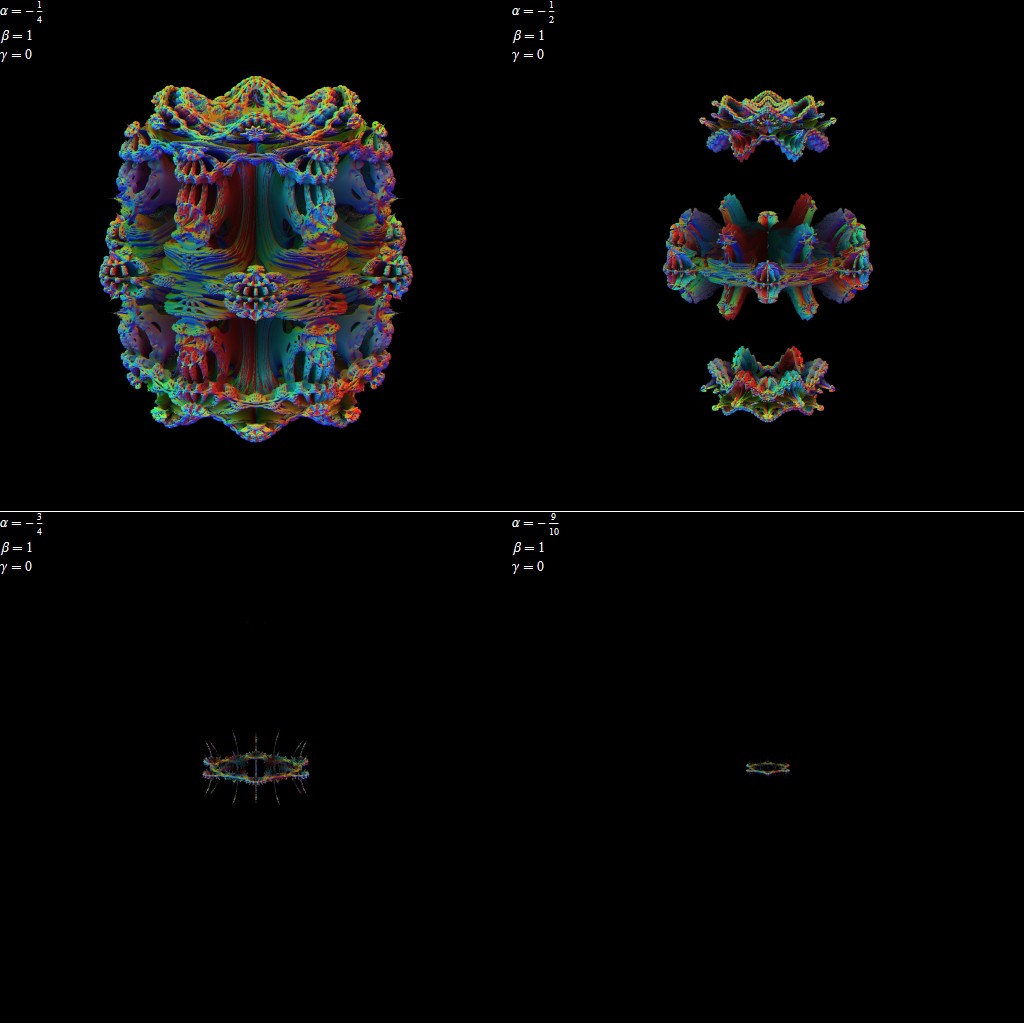

Great idea! I like these a little better than the ones up above:

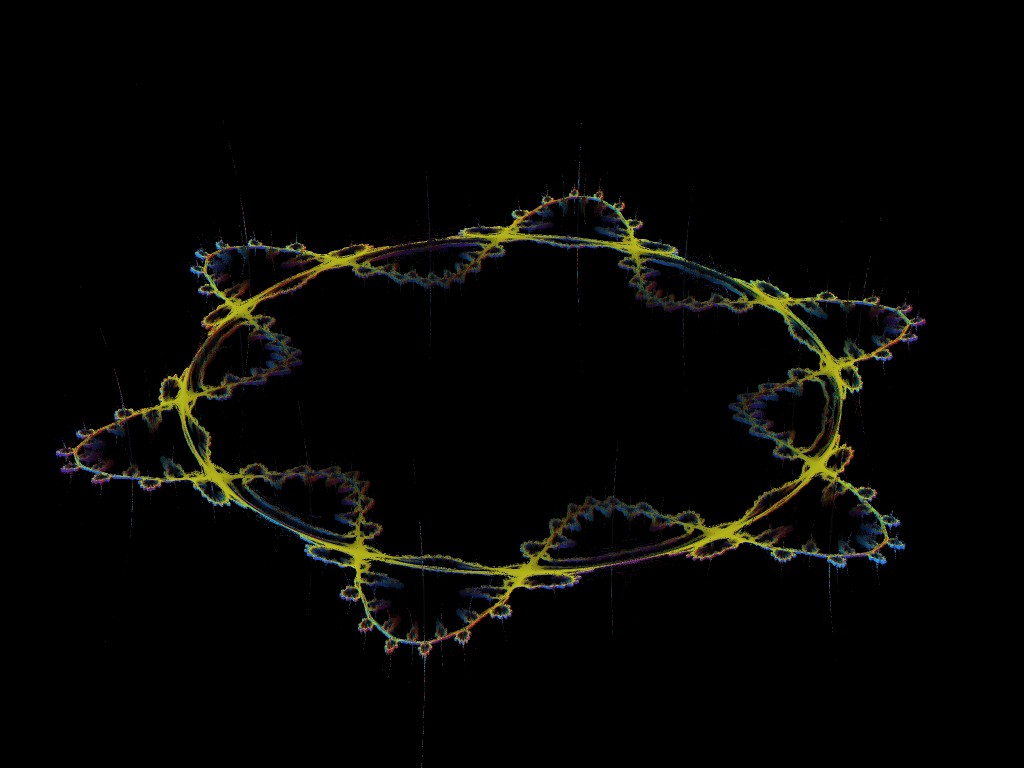

A zoom into the last one looks like this:

Logged
twinbee
Fractal Fertilizer
*****
Posts: 383



WWW
« Reply #7 on: December 04, 2009, 02:12:28 PM »

Hi Brad,

Wow, nice attempts. I'm surprised it looks so similar to the spherical Mandelbulb version.
Logged
matsoljare
Fractal Lover
**
Posts: 215



WWW
« Reply #8 on: December 04, 2009, 08:17:46 PM »

The others should be zoomed, too!
Logged
msltoe
Iterator
*
Posts: 187


« Reply #9 on: November 25, 2010, 07:32:53 PM »

Using a circle of radius, r1, as the origin, the torus bulb is a little less like a Mandelbulb.

   theta = atan2(y,x);
   x1 = r1*cos(theta);
   y1 = r1*sin(theta);
   r = (x-x1)*(x-x1)+(y-y1)*(y-y1)+z*z;
   phi = asin(z/sqrt(r));
   phi = 8*phi;
   theta = 8*theta;
   r = r*r*r*r;
   x1 = (r1+r*cos(phi))*cos(theta);
   y1 = (r1+r*cos(phi))*sin(theta);
   z1 = -r*sin(phi)


Logged
twinbee
Fractal Fertilizer
*****
Posts: 383



WWW
« Reply #10 on: November 28, 2010, 05:33:24 AM »

I also recently tried using a system based on the magnetic field which looks very much like a toroid actually (given a strong small single magnetic point AFAIK), but with the inner part of the ring's surface meeting at the 0,0,0 origin. Unfortunately, results were not far away from a whipped up flying saucer!

Logged
