Author Topic: Non-parametric color mapping techniques  (Read 7029 times)
0 Members and 1 Guest are viewing this topic.
tomnzed
Forums Newbie
*
Posts: 1


« Reply #15 on: September 05, 2012, 01:40:35 PM »

Thanks a lot for the post, lots of useful info smiley
Logged
SeryZone
Strange Attractor
***
Posts: 253


Contemplate...


« Reply #16 on: April 05, 2014, 11:20:39 PM »

thank you very much!!! I experiment with my Iterations Equalization and I use logarithmic, because histogram take too much time for delphi programms...
Logged

SeryZone
Strange Attractor
***
Posts: 253


Contemplate...


« Reply #17 on: April 27, 2014, 03:12:18 PM »

I've written a short comparison of the rank-ordering and histogram methods (and some other typical ones) of mapping counts to colors

http://www.hpdz.net/TechInfo_Colorizing.htm.

I made some test images and graphs showing the effect of each method on some different images. I call them "non-parametric" because they are not based on any analytic model of how the counts are distributed (e.g. linear, log); a similar name is used for statistical tests that do not assume how the data is distributed.

This is a follow-up to a conversation between Duncan C and me in a different thread. Continuing to go into more detail on this issue in that thread seemed to off-topic, so I am starting a new one here.

Hello! how to realize rank-order equalization??? Please, even logarithmic do not give smooth results! Please, show me C code or Delphi - I can understand all!
Logged

johandebock
Explorer
****
Posts: 59



WWW
« Reply #18 on: September 27, 2015, 02:13:12 PM »

Hello! how to realize rank-order equalization??? Please, even logarithmic do not give smooth results! Please, show me C code or Delphi - I can understand all!

Check my code here:
https://github.com/johandebock/BuddhaBrot-MT/blob/master/BuddhaBrot-MT.cpp
coloring method = cm = 0 is my implementation of rank-order mapping
coloring method = cm = 1 is my implementation of histogram mapping

Easiest way is to search for hits on the normalisation value cm0n/cm1n in the code.
1st step is building up the histogram from the counts.
2nd step is using it to map the counts to colors in the color table.
Logged

FractalStefan
Explorer
****
Posts: 45



WWW
« Reply #19 on: May 12, 2017, 03:43:08 PM »

One way to do it with logarithms would be with the function 1 + 1/(log(1-x)-1). This will still map [0,1] to [0,1] monotonically increasing, also with infinite derivative at x=1.

There must be a miskake in this formula, since log(1-x) gives an error for x=1.

The function

x = log(x*4n+1) / log(4n+1)

with n = [0...10] (set by a slider control) lets the user determine the degree of the gradient.

Example images:

Original (linear gradient)


n = 0.00

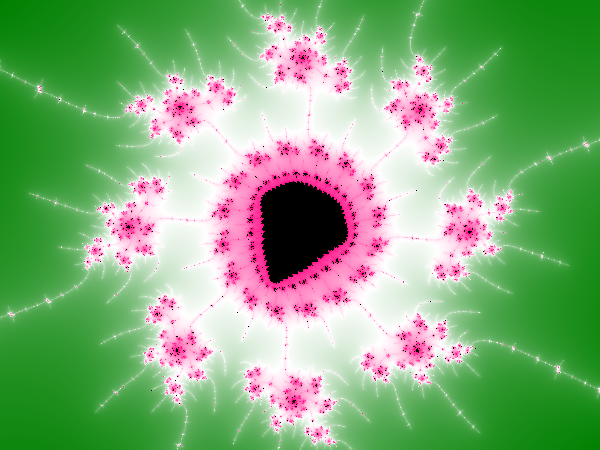

n = 1.00

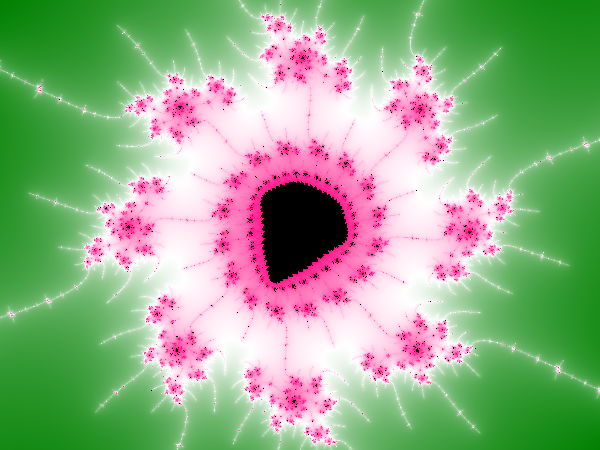

n = 1.50

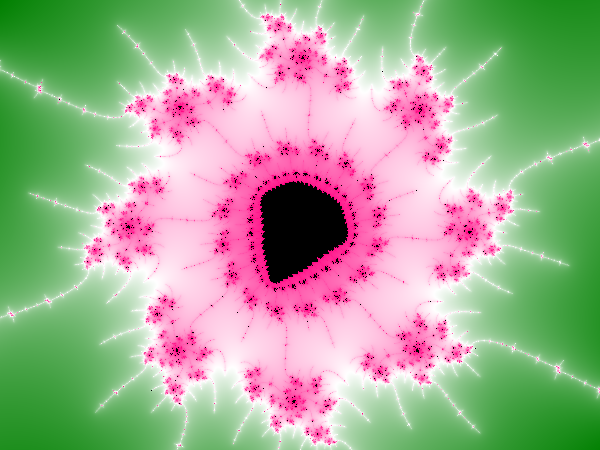

n = 2.00

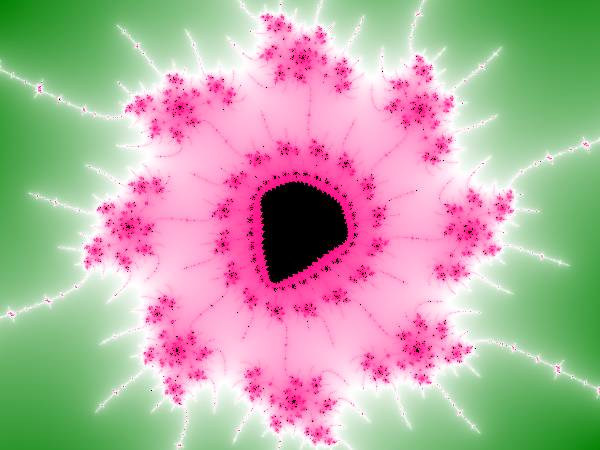

n = 2.50


Using a gamma function instead of a logarithmic one, the gradient becomes a bit softer:

x = x1/Gamma

(Gamma = 0.1...10)

Example images:

Original (linear gradient)


Gamma = 0.50

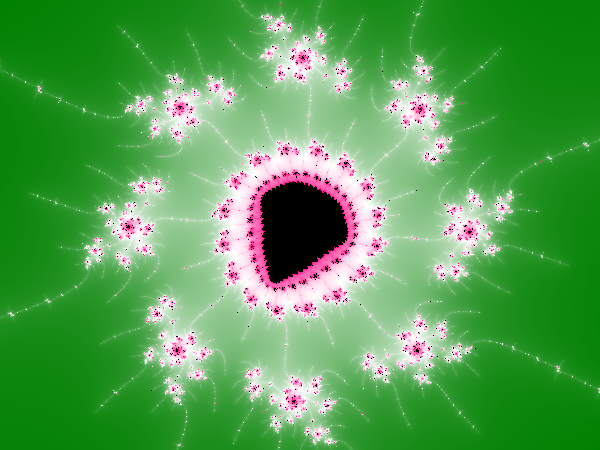

Gamma = 1.00 (this is equal to a linear gradient)

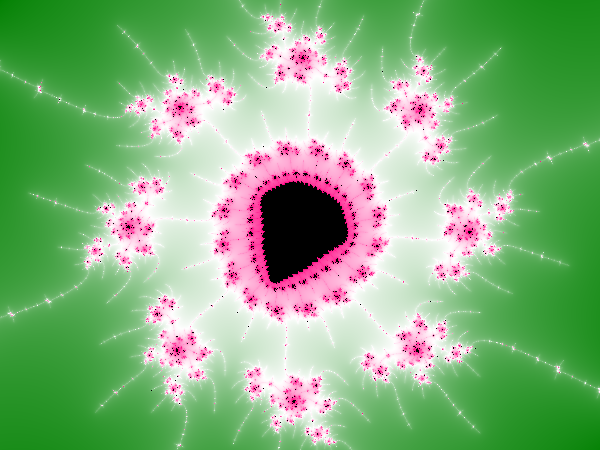

Gamma = 1.50

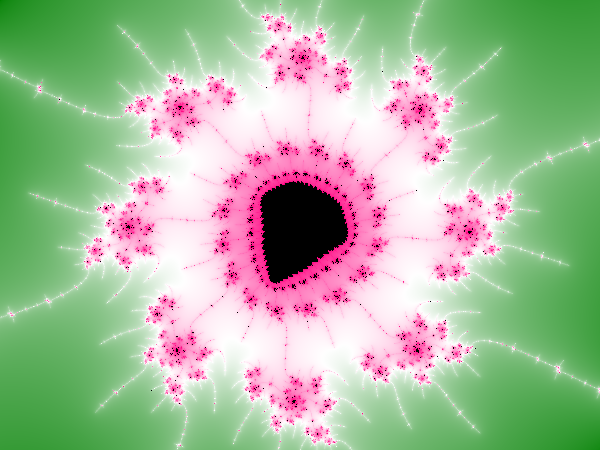

Gamma = 2.00


Gamma = 2.50


Sometimes a simple 1/4 sinus curve yields good results:

x = sin(x * Pi / 2)

Example image:

Original (linear gradient)


1/4-Sinus


This function automatically adapts the degree of the gradient to the number of visible iterations/colors:

x = (log(iterations) - log(minIterations)) / (log(maxIterations) - log(g_minIterations))

Example image:

Original (linear gradient)

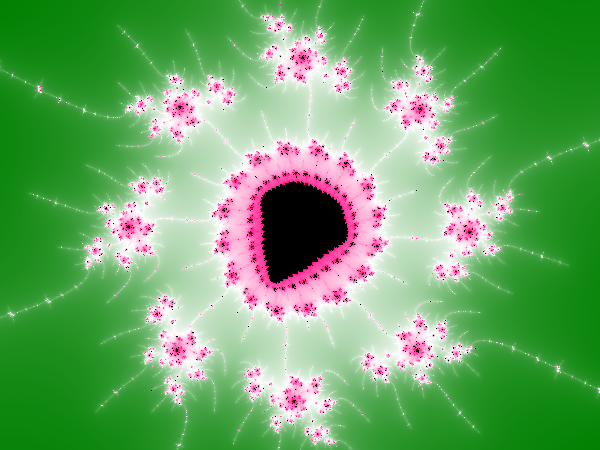

Auto-Logarithm


The example images were created by this JavaScript application.

Stefan
« Last Edit: May 14, 2017, 12:52:16 AM by FractalStefan, Reason: Added example images » Logged
FractalStefan
Explorer
****
Posts: 45



WWW
« Reply #20 on: May 16, 2017, 12:55:21 AM »

I just wrote a more detailed article about some non-linear color mapping functions including an comparison chart with example images:

Color Mapping – Mapping an iteration count to a color in the Mandelbrot set
